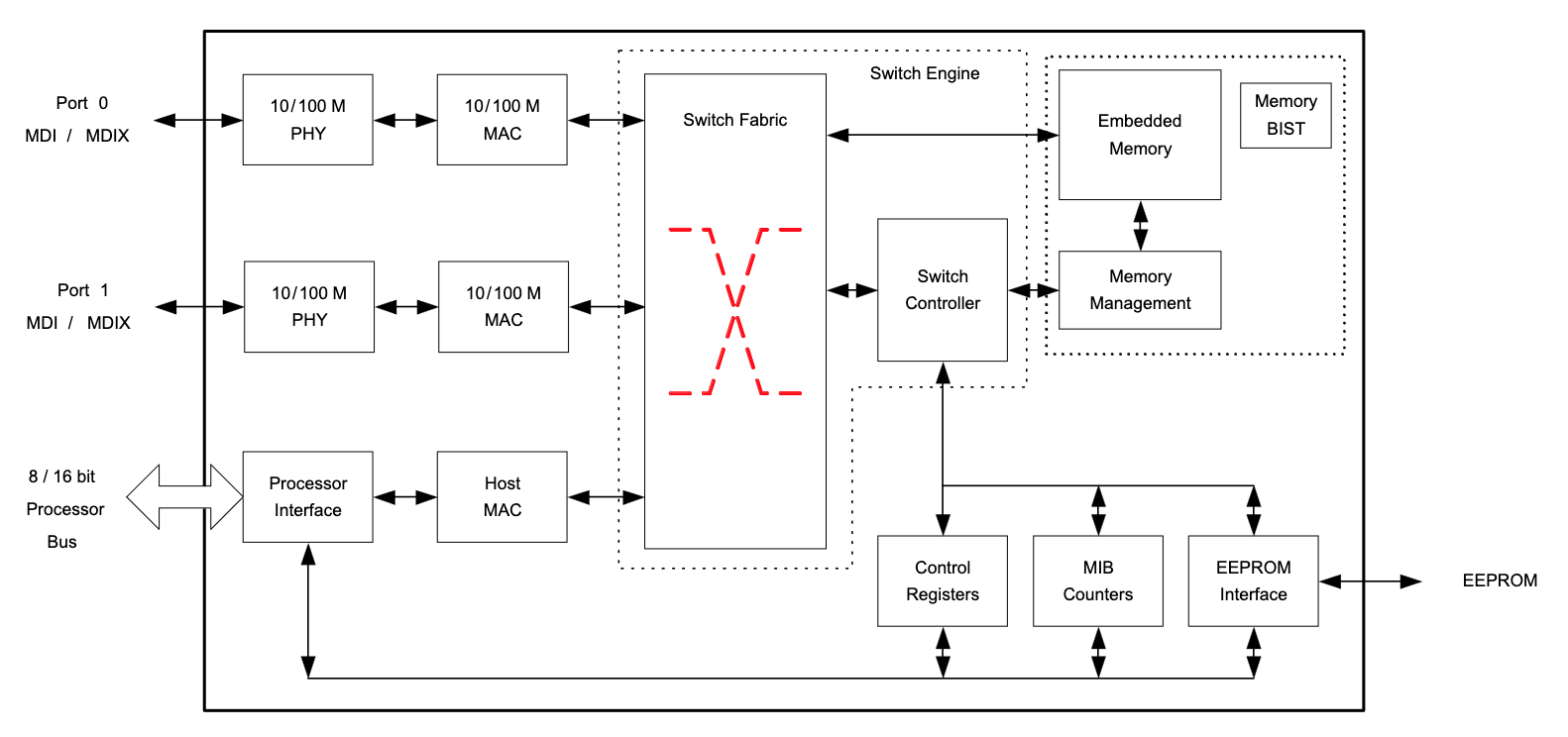

DM9006 10/100 Mbps 2-port Ethernet Switch Controller with General Processor Interface
The DM9006 is a fully integrated and cost-effective fast Ethernet switch controller with two ports 10M/100M PHY, and general processor bus interface. The integrated two ports PHY are compliant with IEEE 802.3u standards and support HP Auto-MDIX capabilities for twisted-pair cable transmit/receive direction automatic switching. The general processor bus can be configured as 8-bit or 16-bit data width. The DM9006 is a managed Switch, not only provides
basic Layer-2 switch functions but offers advanced features that include 802.1Q VLAN, priority queuing management, bandwidth rate control, monitoring port traffic, multicast packet filtering, port security and hardware-based IGMP V1/V2 Snooping, etc.
Features
- Ethernet Switch with two 10/100Mb PHY, and a flexible 8-bit or 16-bit general processor bus interface
- Store and Forward switching approach
- Support HP Auto-MDIX
- Support up-to 1K Unicast MAC addresses
- Support IEEE 802.3x Flow Control in Full-duplex mode
- Support Back Pressure Flow Control in Half-duplex mode
- Per port supports ingress or egress bandwidth rate control
- Support Broadcast/Multicast Storm Suppression
- Support maximum packet length up to 1536(default)/2032 bytes
- Support head of Line (HOL) blocking prevention
- Support MIB counters for diagnostic
- General processor bus is slave architecture
- General processor bus driving capability is adjustable
- General processor bus supports TCP/UDP/IPv4 checksum offload
- EEPROM interface for power up configuration
- Support EEPROM 93C46/93C56 with auto-detecting
- Driving capability of TXD/TXE of MII is adjustable
- Per port supports 4 level priority queues by Port-based, 802.1p VLAN, and IP TOS priority. The priority queue can be set at WRR(Weighted Round Robin) or Strictly(High priority queue first)
- Support 802.1Q VLAN up-to 16 VLAN group.
- Support VLAN ID tag/untag options
- MAC Address Table is accessible
- Support 256-entry multicast address table
- Support port security function
- Support 32 entry hardware-based IGMP Snooping V1, V2
- uP data driving capability adjustable
- 64-pin LQFP 1.8V internal core, 3.3V I/O with 5V tolerant
- Support Lead-Free and Halogen–Free
The general processor bus can be configured as 8-, 16-, or 32-bit data width and interfaces to most embedded CPU. The DM9006 provides TCP/UDP/IPv4 checksum offload function to alleviate host CPU load for improved system performance. The adjustable transmit/receive buffer of processor port can facilitate CPU in processing applications such as Video and Voice streaming. For power management feature, the DM9006 support wake on LAN function via link status change or magic packet detection. Additionally, the MIB counters, loop-back capability and the memory Build-in Self Test (BIST) are useful for system and board level diagnostic.
