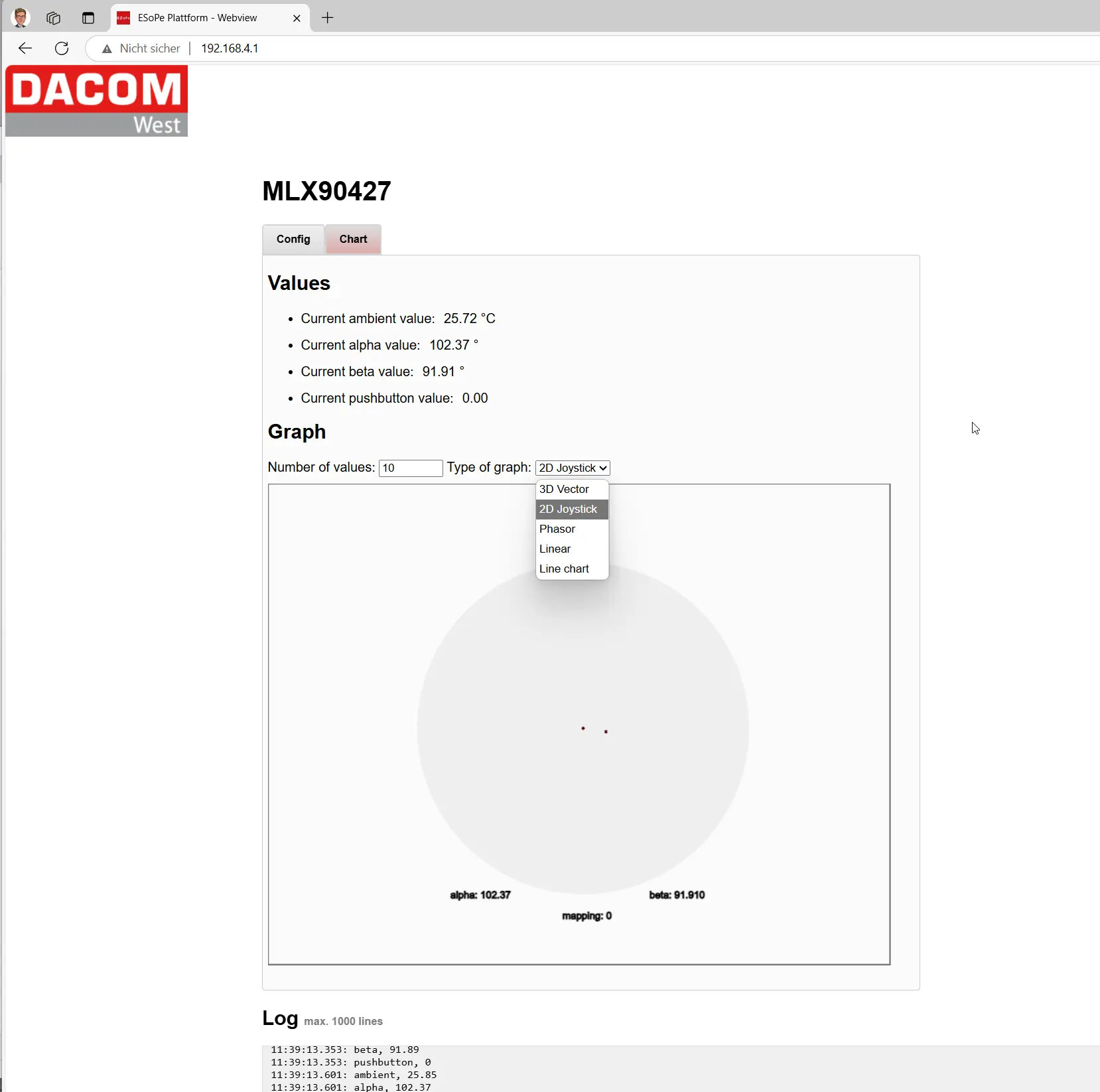

MLX90427 - Triaxis® Position Sensor IC with High Speed

^{The MLX90427 is a monolithic magnetic position sensor IC designed for modern embedded apps with high safety, EMC robustness & stray field immunity. It consists of a Triaxis® Hall magnetic front end, an analog to digital signal conditioner, a DSP for advanced signal processing and an output stage driver. The MLX90427 is sensitive to three (Bx, By, and Bz) components of the}

^{flux density applied to the IC. This allows the MLX90427 to sense any magnet moving in its surrounding and decode its position through an appropriate signal processing. Featuring SPI output with four versatile modes - rotary, joystick, rotary stray field, and raw data - the MLX90427 offers unparalleled flexibility to meet various application requirements.}

MLX90427 Features and benefits

Triaxis® Hall technology
On Chip Signal Processing for Robust Position Sensing
ISO 26262 ASIL C SEooC (Safety Element out of Context)
AEC-Q100 Qualified (Grade 0)
High Speed Serial Interface (SPI compatible – Full Duplex)
16 bit RISC μController based digital signal processing
Enhanced Self-Diagnostics Features
5V and 3V3 Application Compatible
Operating temperature from -40°C to 160°C
14 bit Output Resolution
48 bit ID Number
Packages, RoHS Compliant
- SOIC-8 (DC), single die
- TSSOP-16 (GO), dual die (full redundancy)
