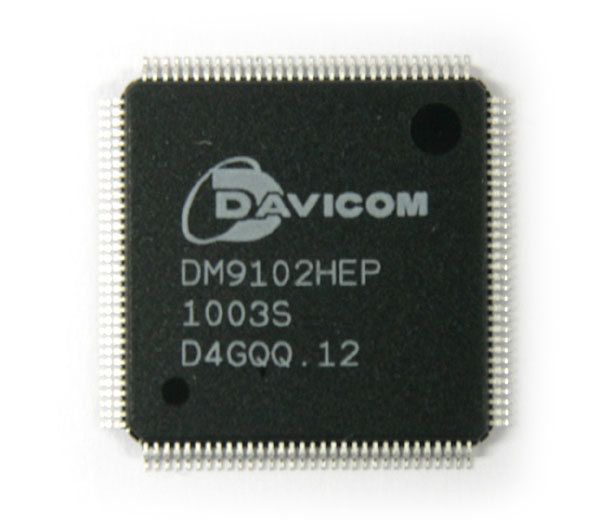

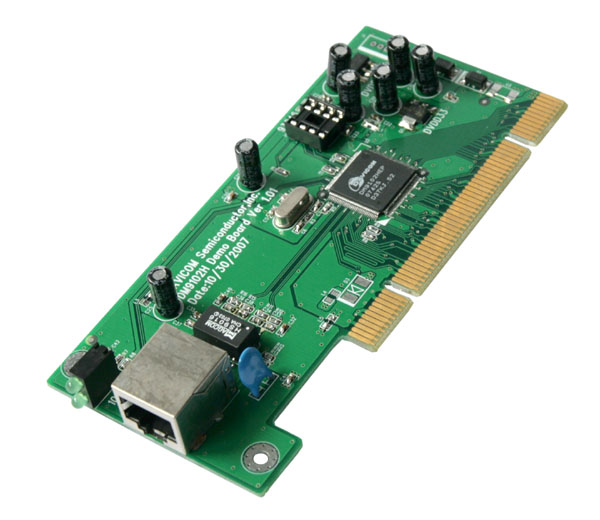

DM 9102H: Single Chip Fast Ethernet NIC Controller
The DM9102H is a fully integrated and cost effective single chip Fast Ethernet NIC controller. It is designed with low power and high performance process. It is a 1.8V/3.3V device with 5V tolerance. The DM9102H provides direct interface to the PCI bus and supports bus master mode to achieve the high performance of the PCI bus. It fully complies with PCI 2.2. In the media side, the DM9102H interfaces to the UTP3, 4, 5 in 10Base-T and the UTP5 in 100Base-TX.
Features
- 128 pin LQFP Package
- Current consumption 130mA + 40mA transformer
- 0.18 µm Process
- Integrated 10/100 Auto MDI-X Transceiver
- Up to 100MHz system clock
- Compatible to IEEE802.3u
- IP/TCP/UDP checksum generation and checkingSupports early TX
- 4k Dword SRAM
- Temperature Range: 0°C to 70°C and -40° to 85°C
- Integrated 3.3V to 1.8V converter
- Processor interface: Byte/Word/Dword
- SPI EEPROM interface
- MII and Reverse-MII interface
- Wake-on-LAN

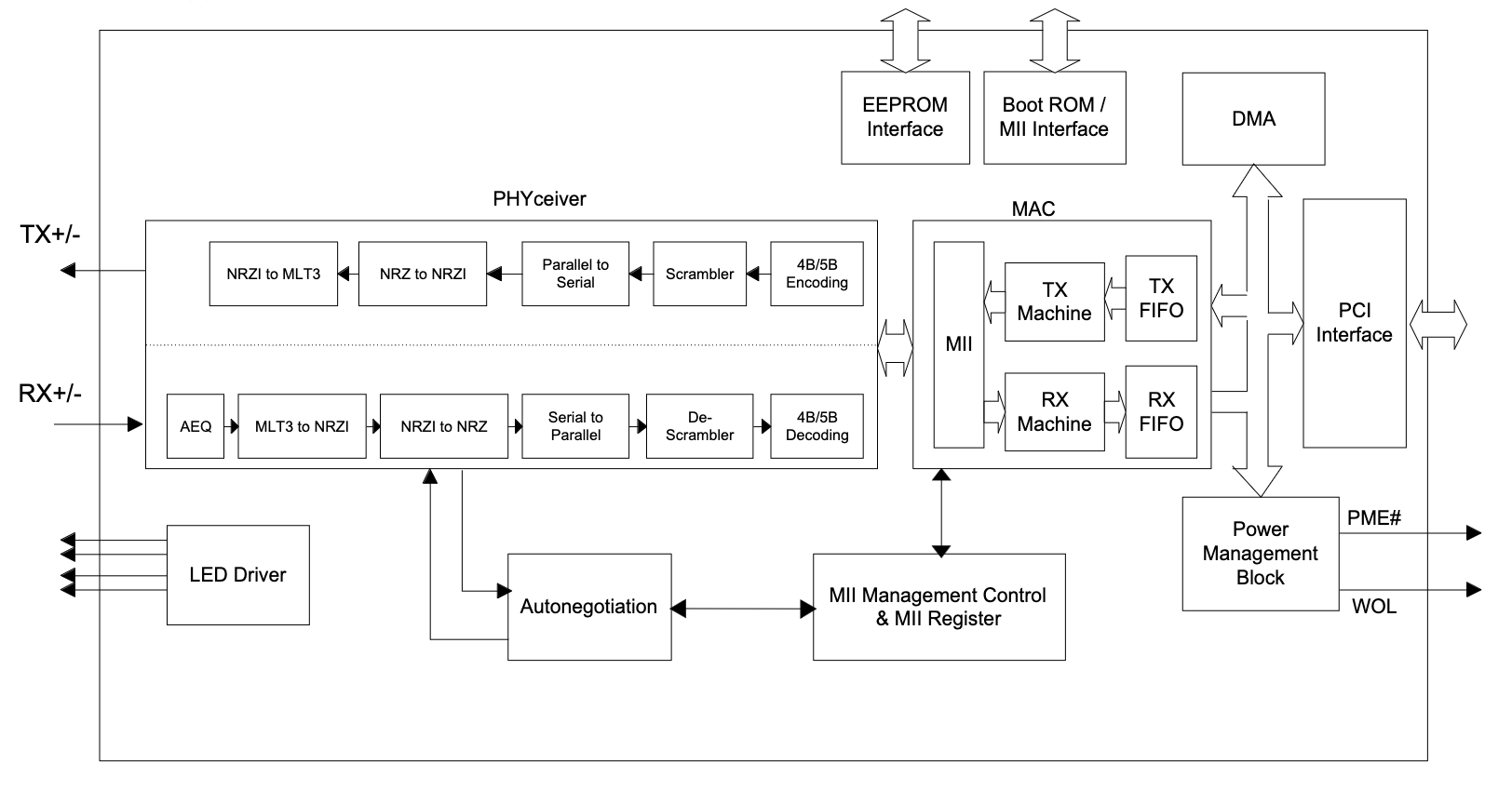

The DM9102H it is fully compliant with the IEEE 802.3u Spec.
The auto-negotiation and HP Auto-MDIX function can automatically configure the DM9102H to take the maximum advantage of its abilities. The DM9102H also supports IEEE 802.3x's full-duplex flow control to prevent the receive overflow of link partner. The IPv4 IP/TCP/UDP checksum generation and checking can reduce the system CPU utilization.
Two different current saving mechanisms are integrated: The main mode is based on the OnNow Achitecture that is required for PC99. Alternative Modes is based on Remote Wake-on-LAN.
Order-Info │ Status │ MSL
Part-No. |
Package |
Temperature |
Status |
Remarks |
Customs-Tariff-No. |
MSL |
Packaging |
DM9102HEP | LQFP-128 | 0° to 70°C | active | 85423190 | 3 | 90/Tray | |
DM9102HIEP | LQFP-128 | -40° to 85°C | active | 85423190 | 3 | 90/Tray |
