Digital infrared thermometer IC with narrow wavelength filter

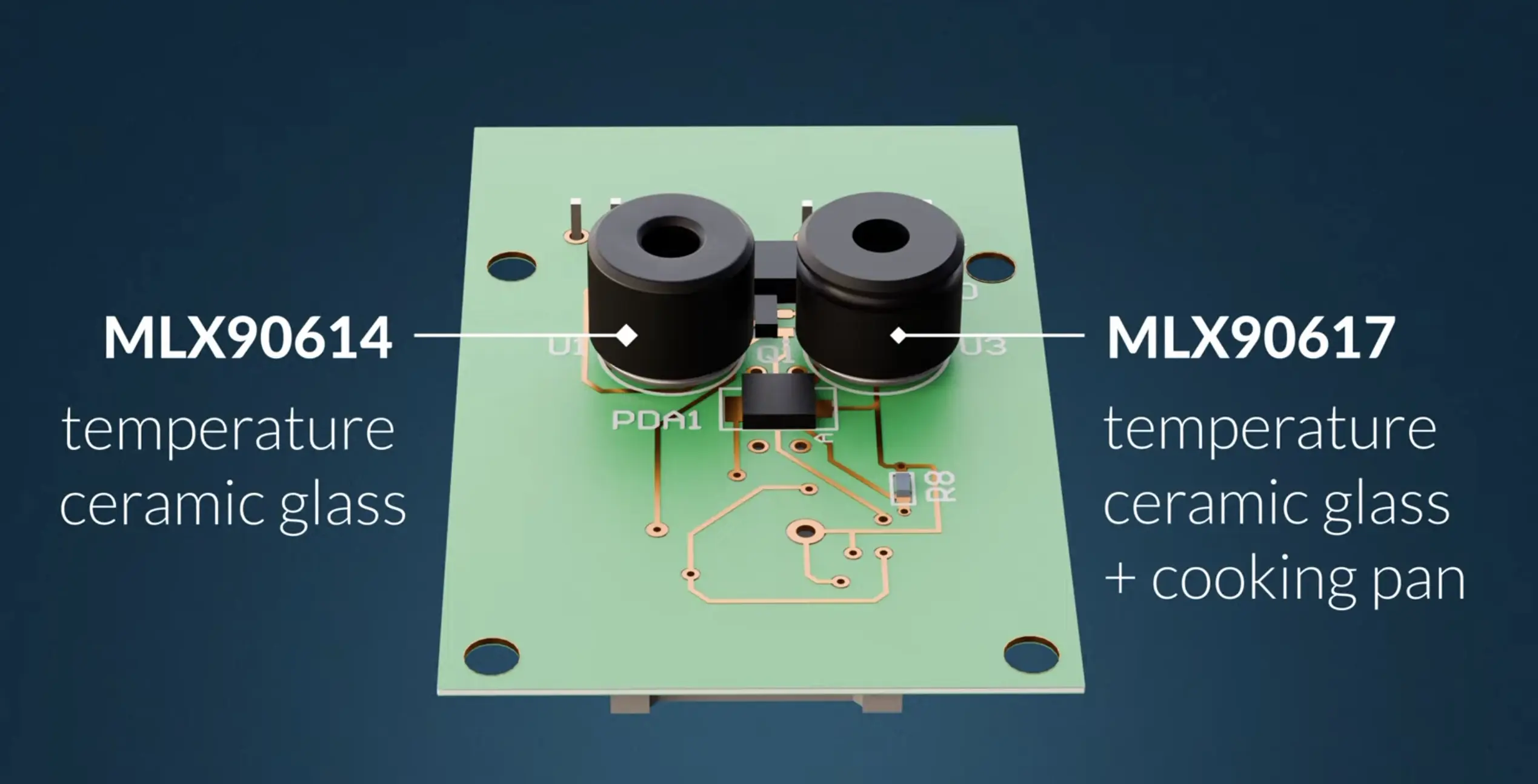

The MLX90617 is a high-precision infrared thermometer designed for non-contact temperature measurements. It features a specific wavelength filter that enables it to detect infrared radiation from hot objects behind ceramic glass, making it suitable for applications like induction cooktops.
This sensor comes factory calibrated for a wide temperature range, measuring ambient temperatures from -0°C to +125°C and object temperatures from 70°C to 250°C. The MLX90617 achieves high accuracy and resolution thanks to its low-noise amplifier, 17-bit ADC, and powerful DSP.
| The MLX90617 is a high-precision infrared thermometer designed for non-contact temperature measurements. It features a specific wavelength filter that enables it to detect infrared radiation from hot objects behind ceramic glass, making it suitable for applications like induction cooktops. | This sensor comes factory calibrated for a wide temperature range, measuring ambient temperatures from -0°C to +125°C and object temperatures from 70°C to 250°C. The MLX90617 achieves high accuracy and resolution thanks to its low-noise amplifier, 17-bit ADC, and powerful DSP. |
Key features MLX90617
- Measure pot temperature through cooktop ceramic surface
- Factory calibrated in wide temperature range
- -0°C…+125˚C for sensor temperature
- 70°C…+250˚C for object temperature
- Narrow wavelength filter
- Single zone
- SMBus compatible digital interface
- Customizable PWM output for continuous reading in EMC difficult surroundings
- 5V supply voltage
- Industry standard TO39 package
