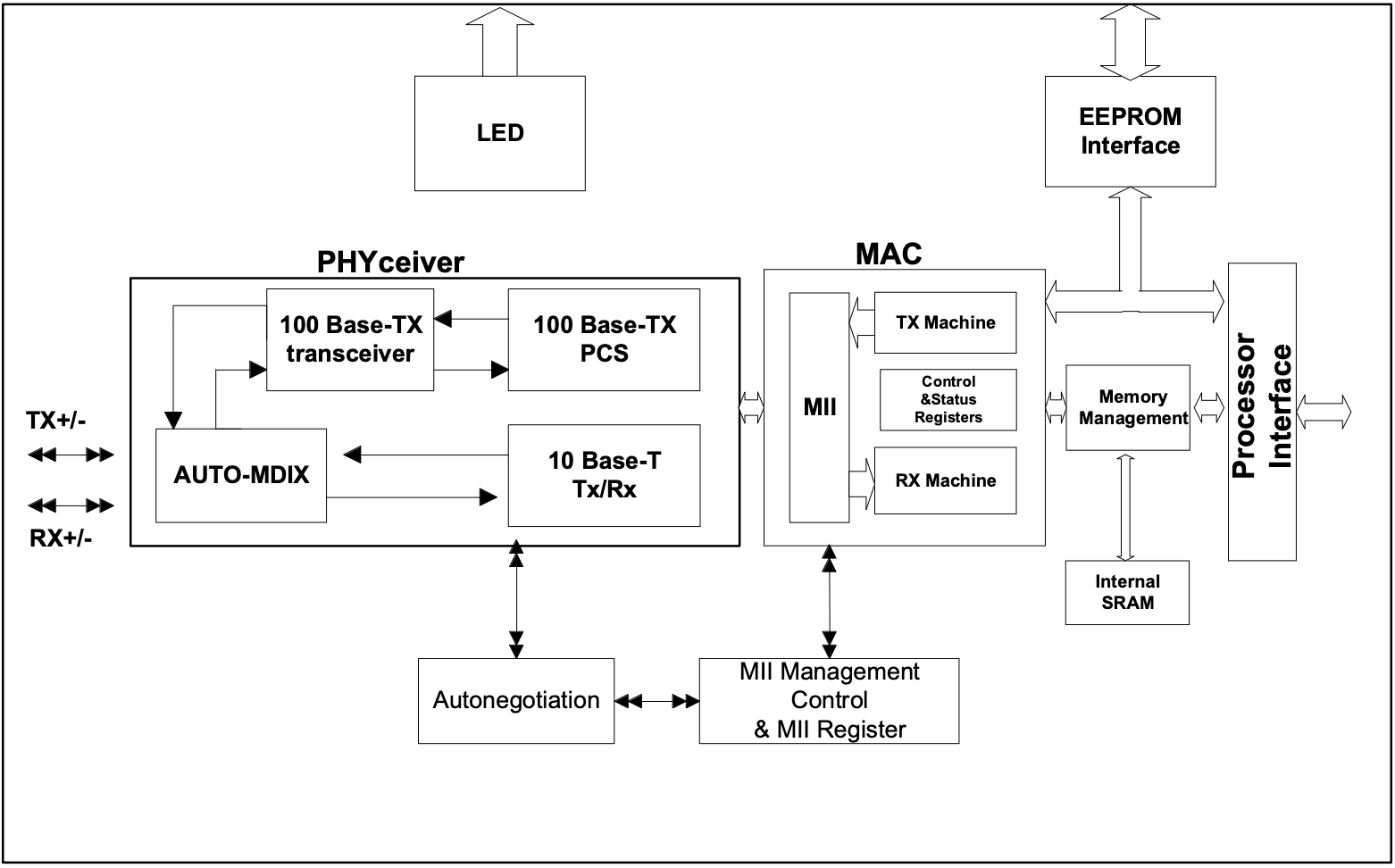

DM9000B Ethernet Controller With General Processor Interface

The DM9000B is a fully integrated and cost-effective low pin count single chip Fast Ethernet controller with a general processor interface, a 10/100M PHY and 4K Dword SRAM. It is designed with low power and high performance process interface that support 3.3V with 5V IO tolerance.

Features

  • Supports processor interface: byte/word of I/O command to internal memory data operation
  • Integrated 10/100M transceiver With HP Auto-MDIX
  • Supports back pressure mode for half-duplex
  • IEEE802.3x flow control for full-duplex mode
  • Supports wakeup frame, link status change and magic packet events for remote wake up
  • Support 100M Fiber interface.
  • Integrated 16K Byte SRAM
  • Build in 3.3V to 1.8V regulator
  • Supports early Transmit
  • Supports IP/TCP/UDP checksum generation and checking
  • Supports automatically load vendor ID and product ID from EEPROM
  • Optional EEPROM configuration
  • Very low power consumption mode:
    – Power reduced mode (cable detection)
    – Power down mode
    – Selectable TX drivers for 1:1 or 1.25:1 transformers for additional power reduction.
  • Compatible with 3.3V and 5.0V tolerant I/O
  • DSP architecture PHY Transceiver.
  • 48-pin LQFP, 0.18 um process

The DM9000B supports 8-bit and 16-bit data interfaces to internal memory accesses for various processors. The PHY of the DM9000B can interface to the UTP3, 4, 5 in 10Base-T and UTP5 in 100Base-TX with HP Auto-MDIX. It is fully compliant with the IEEE 802.3u Spec. Its auto-negotiation function will automatically configure the DM9000B to take the maximum advantage of its abilities. The DM9000B also supports IEEE 802.3x full-duplex flow control.
